MESH

F | BARB MESH

Barb mesh is a barbed expanded metal security panel. The strong, sharp barbs on the expanded metal make it an effective deterrent to intrusions. This product is most suitable for use in areas which require high security e.g. Prisons, military and police installments, power, gas and oil facilities.

Barb mesh can be manufactured using stainless steel and mild steel. This product is currently being patented worldwide.

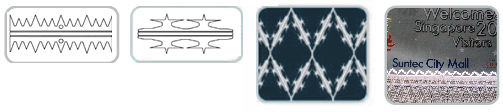

TYPES OF BARBS


*Pictures are not representative of actual size


Specifications

Type	Reference No.	Nominal size of Mesh		Thickness* (mm)	Strand Width (mm)	Standard** sheet size(mm)
		SWM (mm)	LWM (mm)
BM	953530	95	200	3.0	3.5	3000 x 1800

Barb Thickness : 0.6mm

Note:

**All sheet size can be customised according to requirements subject to     production constraints.

* We also offer half-barbed security panels.

Our barb mesh is highly effective and successful in providing high security.

Click here to read about our product in The Straits Times and New Paper.
