C | SUNSCREEN / LOUVRE MESH

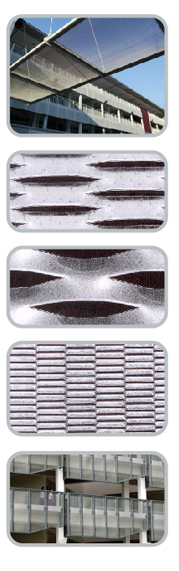

Expanded metals sunscreen products, a better way to control temperature, glare and privacy.
The louvers of the expanded metal are able to deflect the sun’s rays and reduce solar radiation on the screened building. Finer louver meshes can block up to 85% of the solar load that normally penetrates windows.
Expanded metal screening cuts down glare allowing better use of natural light. It also increases air-conditioning efficiency thereby reducing energy wastage. Making your building a more environmentally friendly one.
Expanded metal suncreen products can add to the aesthetic visual appeal of windows, enhancing the architectural design.
| Mesh Reference | Material | Nominal size of Mesh | Thickness* (mm) | Strand Width (mm) | Standard** sheet SWMxLWM(mm) |
|
| SWM (mm) | LWM (mm) | |||||
| LOM1563 | Steel | 16 | 76 | 1.5 | 6.3 | 2440 x 1220 |
| LOM2040 | Steel | 16 | 76 | 2.0 | 4.0 | 2440 x 1220 |
| LOM2063 | Steel | 16 | 76 | 2.0 | 6.3 | 2440 x 1220 |
| LOM3063 | Steel | 16 | 76 | 3.0 | 6.3 | 2440 x 1220 |
| LOM1040 | Steel | 12 | 46 | 1.0 | 4.0 | 2440 x 1220 |
| LOM1540 | Steel | 12 | 46 | 1.5 | 4.0 | 2440 x 1220 |
| LOM2050 | Steel | 12 | 46 | 2.0 | 5.0 | 2440 x 1220 |
* Also available in material such as Aluminium and Stainless Steel.
Medium Mesh
*Pictures are not representative of actual size
